Conotech Στροφείο Δικτύου U/UTP Χαλκός CU CAT5e (305m)
Type: U / UTP, cat.5e made of pure copper
Internal conductor : CU, four pairs twisted asymmetrically Ø 0.51 ± 0.02 mm, solid - 24 AWG
Core insulation: HDPE polyethylene (PE)
Outer sheathing: PVC PVC, gray color
Outer diameter: Ø 6.0 ± 0.02 mm
Flammability class: E ca
Working temperature: -20 C ÷ +70 C
Laying temperature: 0 C ÷ +70 C
Minimum bending radius [x dia. Cable]: > 8
Purpose: internal
Compliance with standards:
ISO / IEC 11801: 2010, EN 13501-6: 2014 (CPR), EN 50173-1: 2011, EN 50575: 2014, IEC 61156-5: 2002 and TIA / EIA 568-B.2: 2001
Length: 305 m
Brand: CONOTECH
Συσκευασία κουτί: 2x305m

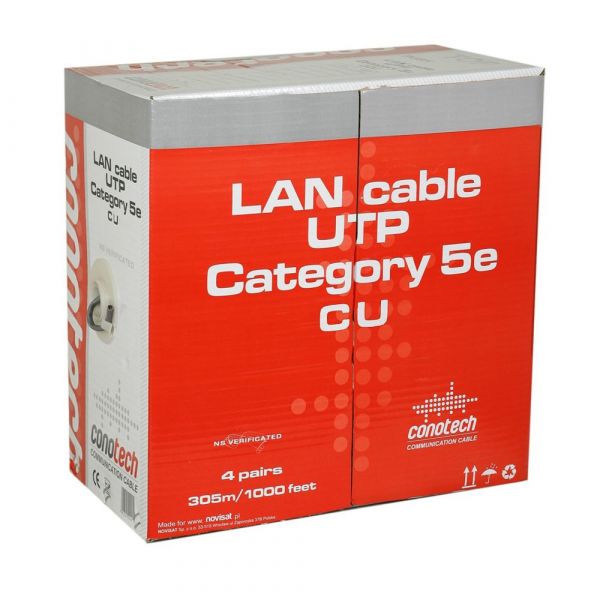

The network cable, unshielded U / UTP category 5e , consists of four pairs of asymmetrically twisted wires made of pure copper . Uniform HDPE polyethylene, which is characterized by increased density and particularly high dielectric insulation, was used for the insulation of the conductors . The sheath is made of gray PVC with an outer diameter of Ø 6.00 ± 0.02 mm, which protects against mechanical damage and enables fast and durable cable routing. The 305 m long twisted-pair cable is packed in an Easy Pull Box type cardboard, which facilitates its use, and has a meter mark that indicates the degree of use.
Standardized quality, compliant with EU directives and meeting European standards, which have been confirmed by the Institute of Telecommunications in Warsaw.
Συσκευασία κουτί: 2x305m
Κωδικός | 18.002.0001 |
---|---|
Βάρος | 10.500000 |
Κατασκευαστής | Conotech |
Barcode / EAN | 5901721544208 |
